Details:

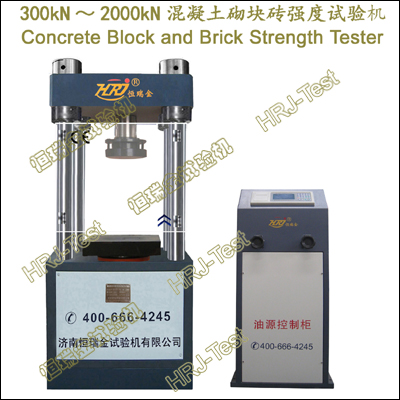

YES-G300kN～2000kN混凝土砌块砖强度试验机
Concrete Block and Brick Strength Tester
重要功能:
→混凝土砌块砖、水泥胶砂、砖瓦建筑材料制品抗压强度、抗折强度、劈裂抗拉强度测试及研究。
→混凝土小型砌块、轻集料小型砌块、蒸压粉煤灰砌块、加气混凝土砌块、空心砌块、多孔砌块、保温砌块、
石膏矿渣水泥混凝土、蒸压泡沫混凝土砖和砌块抗压强度、抗折强度、劈裂抗拉强度测试及研究。、
→砌墙砖、路面砖、蒸压灰砂砖、粉煤灰砖、空心砖、多孔砖、承重砖、烧结砖、饰面砖、陶瓷砖、镁铝砖、镁碳砖、耐火砖、保温砖、砂基透水砖、耐酸砖、透水路面板抗压强度、抗折强度、劈裂抗拉强度测试及研究。
→边长100mm、150mm、200mm立方体试件,￠150x300mm、￠100x200mm、￠200x400mm圆柱体试件,边长150x150x300mm、100x100x300mm、200x200x400mm棱柱体试件抗压强度测试及研究。
重要参数:
→混凝土砌块砖强度试验载荷300kN/600kN/1000kN/2000kN, <= ±1.0％;
→混凝土砌块砖强度试验空间0～450mm（可定制）;
→四立柱间距（LW）360x360mm;430x430mm（可定制）;
→活塞行程0～150mm;
→载荷加载速率0～60kN/s;
→HRJ-Test微电脑测控系统/可定制英文版,多通道、多功能、易操控、一体化液压油源系统。
重要特点:
→人体工程学设计,符合人-机环境系统,健康舒适、高效安全。
→四立柱结构、加载液压缸下置,高刚性、高稳定性、无振动冲击、流线型荷载机架。
→双控双向液压油缸,快速试验、高频响应、快速返回。
→高精度测力传感器,线性宽,稳定性好,保证载荷测力精准度。
→电路板采用光电隔离设计,抗干扰能力强。
→手动控制、液压加载,液晶显示器,实时显示试验力、曲线图形、位移、加荷速率。
→HRJ-Test微电脑测控系统/可定制英文版,实时控制显示,读数直观,曲线大小自动调整;坐标满度自动调节。
→数据自动采集、处理、分析,试验结果以直观的文字、图形方式进行显示、保存及打印。
→汉字显示多层菜单结构,功能强大,操作方便;操作提示和向导功能。
→可存储1000个试样的数据,且可按编号、日期等方式查询。
→标准模块:权限管理模块、试验模块、控制模块、分析模块、查询模块、输出模块等。
→电路板采用光电隔离设计,抗干扰能力强。
→网络数据库管理,可与多家联网公司直联。
→多重保护功能:试验力过载溢流保护;过流过压保护;试样破损安全保护;试验结束自动保护等。
引用标准、文献文件:
ASTM C1106-00(2012);ASTM C902;ASTM C936;EN 1338;JIS R1535;JC/T2391-2017;GB/T32833-2016;GB/T35610-2017;GB/T25183-2010;GB/T25044-2010;GB/T50146-2014;JGJ/T447-2018;GB/T50081;GB/T50107;GB 50164-2011;GB/T18736-2017;HRJ Tester;JGJ/T385-2015;JGJ/T294-2013;TB/T3275-2011;GB/T35153-2017;GB/T36495-2018;JG/T311-2011;GB/T26538-2011;GB/T11968;HRJ Tester;GB/T32982-2016;GB/T29062-2012;GB/T22589-2017;GB/T2275-2017;GB/T13545-2014;GB/T3994-2013;JC/T2489-2018;GB/T26001-2010E;JC/T239-2014;GB/T13544-2011;JG/T376-2012;GB/T28635-2012;GB/T26541-2011;
GB/T32987-2016混凝土路面砖性能试验方法;GB/T4111-2013混凝土砌块和砖试验方法;GB/T2542-2012砌墙砖试验方法;GB/T5101-2017烧结普通砖;HRJ Tester;JT/T1148-2017公路工程水泥混凝土制品边坡砌块;JC/T2483-2018泡沫混凝土填芯砌块;JC/T2369-2016建筑碎料小型空心砌块;GB/T36534-2018陶粒发泡混凝土砌块;GB/T36535-2018蒸压粉煤灰空心砖和空心砌块;GB/T35845-2018莫来石质隔热耐火砖;GB/T34188-2017粘土质耐火砖;JG/T504-2016陶粒加气混凝土砌块;JG/T506-2016尾砂微晶发泡板材及砌块;GB/T8239-2014普通混凝土小型砌块;HRJ Tester;GB/T29060-2012复合保温砖和复合保温砌块;GB/T15229-2011轻集料混凝土小型空心砌块;JG/T407-2013自保温混凝土复合砌块;JG/T327-2011植物纤维工业灰渣混凝土砌块;GB/T25779承重混凝土多孔砖;GB/T25993透水路面砖和透水路面板;GB/T11945蒸压灰砂砖强度试验机;200mm耐酸砖抗压强度试验;300mm路面砖强度试验;透水路面板抗折强度试验;透水路面砖劈裂抗拉强度试验;100kN混凝土抗弯拉强度试验机;HRJ Tester;2000kN移动式混凝土压力试验机;3000kN全自动混凝土快速压力试验机;300kN混凝土抗折强度试验机;1000kN镁碳砖抗压强度试验;10kN～300kN砂浆强度试验机;GB/T8488耐酸砖强度试验机;2000kN多孔砖强度试验机;
Concrete Block and Brick Strength Tester;Hydraulic Servo Compression Tester;Concrete Compression Strength Tester;Block Brick Compression Strength Tester;Movable Concrete Compression Strength Tester;Concrete Bending Strength Tester;Standard Test Methods for Chemical Resistance and Physical Properties of Carbon Brick;Standard Specification for Pedestrian and Light Traffic Paving Brick;Standard Specification for Solid Concrete Interlocking Paving Units;Concrete paving blocks-Requirements and test methods;HRJ Tester;Test methods for wall bricks;Concrete paving flags-Requirements and test methods;Fully Automatic Concrete Rapid Pressure Tester;
Test method for performance of concrete paving units;Test methods for the concrete block and brick;
Fired common bricks;Cement and concrete product for highway engineering-Slope block;Fragmentized building materials small hollow block;Foamed concrete blocks filled with ceramsite;Autoclaved fly ash hollow bricks and blocks;Insulating mullite refractory bricks;Fireclay refractory bricks;Fired decorative brick;Ceramsite aerated concrete block;Tailings micro-crystal foamed plates and blocks;Autoclaved fly ash brick;HRJ Tester;Normal concrete small block;Fired hollow bricks and blocks;Insulating fireclay refractory bricks;Precast concrete paving units;Autoclaved fly ash perforated brick;Autoclaved foam concrete bricks and blocks;The bricks & blocks composited insulation materials;Lightweight aggregate concrete small hollow block;Self-insulation concrete compound blocks;Magnesia and magnesia-alumina bricks;Magnesia carbon bricks;HRJ Tester;Slip-resistance ceramic tile;Plant fiber-industrial waste slag concrete block;Fired perforated brick and block;Sand-based water permeable brick;Flexible tile for decoration;Fired common bricks Tester;Fired paving units Tester;Fired heat preservation brick and block;Load bearing concrete perforated bricks;Permeable paving bricks permeable paving flags;Autoclaved lime-sand brick;Autoclaved aerated concrete blocks;Acid resisting bricks and tiles;Technical code for application of fly ash concrete;Paste for compressive strength test of wall brick;General request of the preparation equipment used in compressive strength test of wall bricks;Standard for test method of mechanical properties on ordinary concrete;Standard for evaluation of concrete compressive strength;HRJ Tester;Concrete for railway construction;Test code for hydraulic concrete;Test method for physical properties of raw material of sintered brick and tile; |
