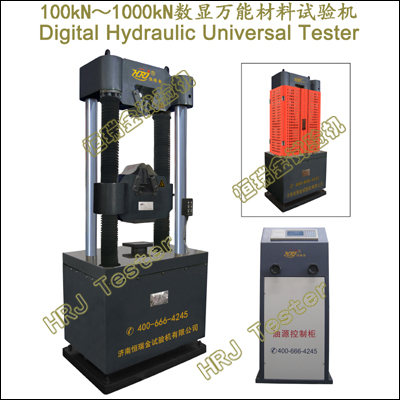

WES-D100kN～1000kN数显万能材料试验机Digital Hydraulic Universal Tester(4 Column)
1	最大试验力	100kN/300kN		600kN	1000kN
2	试验力示值相对误差	<= ±1%
3	试验力测量范围	2%～100%F.S
4	试验力分辨力	1/200000F.S
5	位移分辨力	0.01mm
6	位移速度相对误差	<= ±5%
7	加荷速率	微电脑实时控制显示
8	活塞最大移动速度	≈90mm/min	≈100 mm/min		≈70(mm/min)
9	横梁最大移动速度	≈120mm/min	≈150 mm/min		≈120(mm/min)
10	拉伸试验空间	620mm	600mm		630mm
11	压缩试验空间	550mm	520mm		530mm
12	弯曲支点最大间距	400mm	600mm		600mm
13	立柱净间距	500mm	570mm		550mm
14	圆试样夹持直径（mm）	￠10-20;20-32	￠13-26;26-40		￠14-32;32-45
15	扩展螺纹钢/带肋钢筋/螺栓	￠4-10mm	￠6-13mm		￠6-13mm;M12-33mm
16	板试样夹持厚度	0-15mm	0-15;15-30mm		0-40mm
17	板试样夹持宽度	70mm	90mm		125mm
18	上下压盘尺寸	Φ120mm	205x205mm		205x205mm
19	机器总功率	≈2.2kw	≈3.0kW		≈3.0kW
20	荷载机架尺寸（LWH）	≈820x520x2000mm	≈970x650x2300mm		≈970x650x2250mm
21	荷载机架结构/试样夹紧方式	4立柱丝杠;液压自动夹紧
22	液压控制柜尺寸（LWH）	≈700x600x1200mm
23	电源电压	～380V±10% 50Hz（须可靠接地）
