Details:

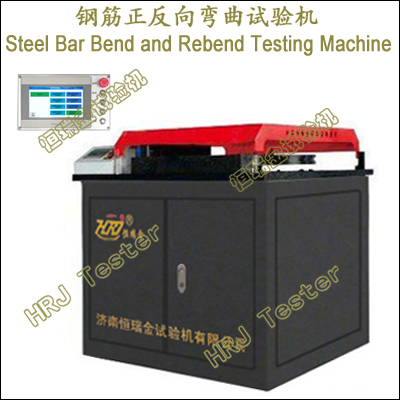

GW-40C钢筋反复弯曲试验机Steel Bar Bend and Rebend Testing Machine
功能特点:
→ <= 40mm光圆钢筋、带肋钢筋180°弯曲试验;钢筋反向弯曲试验,钢筋正向弯曲90°,再反向弯曲20°试验;观测试件是否产生裂纹,判断材料在弯曲塑性变形与时效后的弯曲变形性能。
→棒材、板带材、型材等金属及非金属材料、复合材料0°～180°弯曲试验,自设任意弯曲角度。
→人体工程学设计,机宜人、人适机,符合人-机-环境系统,高效、健康、舒适、安全。
→整机由传动部分、承载机架、工作台、螺旋调整装置和安全限位机构组成。
→高刚性工作台、高稳定性、无振动冲击、流线型卧式载荷机架。
→内置全数字、多通道、多功能、易操控的HRJ-Test弯曲试验软件/可定制英文版。多种标准方法（国标、国军标、英标、美标、德标、日标、意标、俄标、法标、澳标、欧标等/GB、GJB、ISO、JIS、ASTM、DIN、BS、NF、EN、AS、NBR、IEC、GOST、CNS、APA)。
→HRJ-Test触屏操控系统,屏键一体化、模块化、程序化、易操控、钢筋弯曲角度实时显示、可设定。
→HRJ滚转式弯曲装置,支承辊随钢筋弯曲转动,减小摩擦力。
→钢筋轴向紧固装置,保证钢筋反向弯曲试验无轴向滑移。
→电路板采用光电隔离设计,抗干扰能力强。
→多重保护功能:过载、过流、过压保护;试样破断时安全保护;紧急停机保护。
重要参数:
|
GW-40C钢筋反复弯曲试验机Steel Bar Bend and Rebend Testing Machine |
|
1 |
弯曲钢筋直径范围 |
d6～Φ40mm |
|
2 |
钢筋正向弯曲角度 |
0°～180°内任意设定 |
|
3 |
钢筋反向弯曲角度 |
0°～90°内任意设定 |
|
4 |
工作盘转动速度 |
<= 1.4r/min;20°/s |
|
5 |
辊心距离 |
165mm |
|
6 |
工作盘直径 |
￠580mm |
|
7 |
电源电压及功率 |
～380V±10% 50Hz（须可靠接地）;≈1.5kW |
|
8 |
机器尺寸及重量 |
LWH≈1100x900x1200mm;WT≈1500kg |
主要配置:
→高刚性、高稳定性、无振动冲击、流线型卧式承载机架,安全防护网。
→钢筋弯曲工作轴￠25mm,￠42mm。
→HRB400/HRBF400/RB400E/HRBF400E钢筋反向弯曲压头:直径d6/8/10/12/14/16/18/20/22/25mm,
5d弯芯（30/40/50/60/70/80/90/100/110/125mm）;直径d28/32/36/40mm,6d弯芯（168/192/216/240mm）;
→技术资料:说明书、装箱单、合格证、服务单。
→钢筋弯曲试验压头选配:HRB500/HRBF500/HRB500E/HRBF500E,直径d6～25mm,6d＆7d正反向弯曲试验压头;直径d28～40mm,7d＆8d正反向弯曲试验压头;HCRB550/CRB600H/CRB650/CRB650H冷轧带肋钢筋弯曲试验压头;CRB800/CRB800H/CRB970冷轧带肋钢筋弯曲试验压头。
