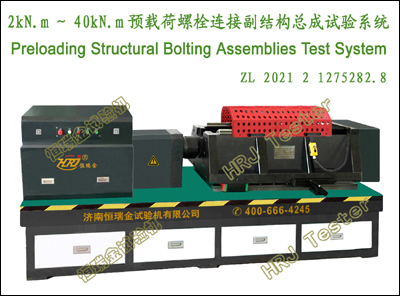

2kN.m～40kN.m预载荷螺栓连接副试验系统
Preloading Structural Bolting Assemblies Test System
重要功能:
→预载荷高强度栓接结构连接副试验;高强度螺栓组件测试;钢结构栓接连接副试验。
→栓接结构扭拉测试;螺栓螺母垫圈连接副测试;预载荷适应性试验;栓接结构预紧力;螺栓轴力测试;螺栓和螺母相对转角;转角-螺栓轴力曲线;扭矩-螺栓轴力曲线;伸长-螺栓轴力曲线;0.2％螺栓永久延伸。
→栓接连接副扭矩测试;极限紧固扭矩;扭矩系数单个值;扭矩系数平均值;变异系数;螺栓紧固轴力极限值;螺栓紧固轴力极限值的平均值;HRJ Tester;连接副旋转拉力曲线;螺栓扭矩拉力曲线;螺栓延伸拉力曲线;扭矩法;扭矩-扭角法;预拉伸法;自动控制法;螺母螺栓支撑面摩擦系数;螺纹摩擦系数;总摩擦系数。
→预载荷栓接结构总成试验;工业建筑栓接连接副试验;民用建筑栓接连接副试验;桥梁栓接连接副试验;风电机组螺栓连接副试验;塔架高强度螺栓连接副试验;塔桅栓接连接副试验;锅炉栓接连接副试验;起重机械栓接连接副试验;HRJ Tester;扭剪型栓接连接副试验;HV大六角栓接连接副试验;HR大六角栓接连接副试验;M39～M64大六角头螺栓连接副试验;M12～M36大六角头螺栓连接副试验;单一栓接连接副试验;扩展栓接连接副试验。
重要参数:
→SBAT2kN.m～40kN.m预载荷螺栓连接副试验系统;
→螺栓连接副试验荷载2kN.m/3kN.m/5kN.m/10kN.m/20kN.m/30kN.m/40kN.m;
→栓接连接副拧紧转速0.1～10r/min;
→螺栓轴力荷载500kN/700kN/1000kN/1500kN/2000kN/3000kN/4000kN;
→预载荷试验旋转半径≥100mm～500mm;
→高刚性、高稳定性、无振动冲击流线型荷载机架,1.2～1.5倍试验刚度;
→人体工程学设计,机宜人、人适机,符合人-机-环境系统,高效、健康、舒适、安全;
→内置式全数字闭环、多通道、多功能、易操控的HRJ-Test连接副测控软件/可定制英文版;多种标准方法（国标、国军标、英标、美标、德标、日标、意标、俄标、法标、澳标、欧标等/GB、GJB、ISO、JIS、ASTM、DIN、BS、NF、EN、AS、NBR、IEC、GOST、CNS、APA);
→可定制摄像系统,实时记录螺栓扭转试验过程,图像采集系统与软件操控系统同步通讯;
→可定制栓连接大扭拉和小扭拉二合一试验机,实现大规格螺栓和小规格螺栓扭拉一体试验。
