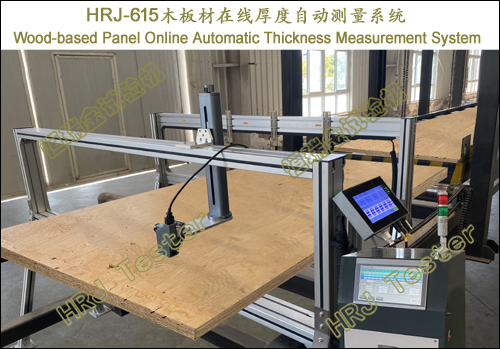

HRJ-615木板材在线厚度自动测量系统
Wood-based Panel Online Automatic Thickness Measurement System

重要功能:
→结构用人造木基板材生产线板材在线厚度快速测量。
→胶合层积木LVL层积木PSL平行积成木生产线板材在线厚度快速测量。
→结构木材集成材承重集成材层积胶合层压板生产线板材在线厚度快速测量。
→指接集成材斜接集成材拼宽集成材生产线板材在线厚度快速测量。
→木质地板人造板材生产线板材在线厚度快速测量。
→木工字梁木结构复合板特种木材规格材木质品生产线板材在线厚度快速测量。
→防火木质品室内外阻燃木材胶合板生产线板材在线厚度快速测量。
→竹炭板竹木镶板刨花板生产线板材在线厚度快速测量。
→石膏板纤维板稻草板保温材料板非金属复合板材木基紧密板材在线厚度快速测量。

重要参数:
→适用于流水线木板材压机长度6m～15m。宽度可根据生产需求定制.
→适用于流水线木板材厚度18mm～140mm,木板材测厚精度0.1mm。
→木板材生产线传送速度100mm/s～200mm/s,自动测厚采集频率1s/点,自动记录记录1m/点。
→ABC三工位厚度测量,每个点位数据分别显示,并自动筛选木材板厚最大值、最小值、平均值。超过最大值和低于最小值可自动报警。
→三工位可分别独立控制,灵活选择,也可以定制工位数量。
→安装方便可跨接板材传输带通道,无需单独预留新的安装工位。
→PLC触屏控制、简洁直观、操作简便。每个工位数据单独存储,测量数据配有USB接口,可外接大容量存储器进行数据分析和保存。
→喷码装置可将产品编码自动喷涂到木材板面,方便区分查找木板材版次。
→预留网络接口,可方便后续系统升级更新。
→HRJ-Test非接触式木板材在线测厚自动测量系统。
