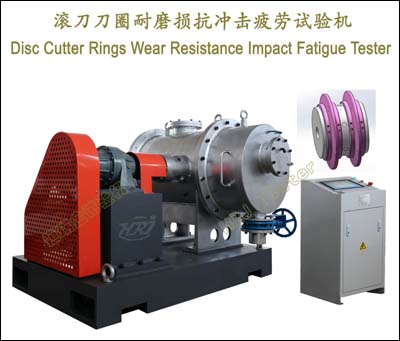

滚刀刀圈耐磨损抗冲击疲劳试验机
Disc Cutter Rings Wear Resistance Impact Fatigue Tester

功能参数:
→将刀圈安装在高强度耐压密封舱旋转主轴,加入泥岩和青砂岩、泥浆石块沙砾混合料,设定不同旋转速度、不同气压力环境工况,模拟强压力高冲击破岩过程中,滚刀刀圈发生磨损、偏磨、卷刃崩刃、断裂、脱落等受损坏状况,推算刀圈耐磨损抗冲击疲劳系数。
→研究恶劣工况下滚刀磨损失效机理,为高性能滚刀破岩能力和工况寿命提供演算数据。
→滚刀刀圈耐磨粒磨损抗冲击疲劳试验机由高强度耐压密封舱系统、传动控制系统、混合料加排系统、气压调控系统、破岩数据采集系统组成
→测试刀圈尺寸17英寸（432mm）18英寸（457mm）19英寸（483m）20英寸（508mm）。
→刀轴旋转速度150rpm。
→高强度耐压密封舱内部气压力10bar。
→试验机占地尺寸LWH≈1700x1600x1200mm,传动控制系统LWH≈500x500x1200mm。
→电源电压及功率～380V±10% 50Hz（须可靠接地）,≈6.0kW。

引用标准、文献文件:
→350kN掘进机盘形滚刀摩擦磨损疲劳寿命试验测试系统;JB/T3385-2018全断面隧道掘进机用盘形滚刀;刀体内腔密封性能检验;气压0.4MPa温度80°C浮动油封密封性能良好;盘形滚刀模拟工况运转200h检测渗漏密封性能试验;
