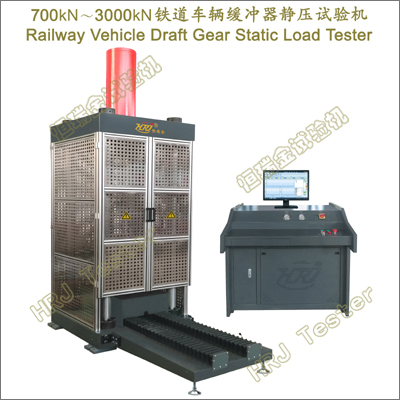

700kN～3000kN铁道车辆缓冲器静压试验机

Railway Vehicle Draft Gear Static Load Tester

重要功能:

→TB/T1961-2023《钩缓装置及组件 缓冲器》,铁道车辆缓冲器静压试验,测试缓冲器初始压力及静态阻抗力。在静态阻抗力载荷下,缓冲器不应出现压死现象。弹性胶泥缓冲器静压试验,液压缓冲器静压试验,预缩短功能缓冲器装车前预压量测定。

→GTCC-106-2019铁道车辆缓冲器,弹性胶泥缓冲器和液压缓冲器拉力验证测定。弹性胶泥缓冲器和液压缓冲器应具有良好的密封性和持久的性能稳定性。

重要参数:

→高刚性高稳定性、无振动冲击流线型四柱荷载机架,安全防护;

→缓冲器拉伸方向阻抗力静压载荷800kN/1500kN/2270kN/2500kN/3000kN;

→缓冲器压缩方向阻抗力静压载荷255kN/750kN/850kN/1000kN/1500kN;

→缓冲器静压试验上压板￠350mm,下压板600x350mm;

→缓冲器静压试验压缩速度4mm/s～5mm/s可调,空载速度 <= 10mm/s;

→缓冲器静压试验空间高度800mm/1450mm;

→缓冲器静压试验活塞行程250mm/400mm;

→缓冲器载荷传感器4支;

→缓冲器自动送样装置,精准快速;

→内置式全数字闭环、多通道、多功能、易操控的HRJ-Test缓冲器测控软件/可定制英文版;多种标准方法（国标、国军标、英标、美标、德标、日标、意标、俄标、法标、澳标、欧标等/GB、GJB、ISO、JIS、ASTM、DIN、BS、NF、EN、AS、NBR、IEC、GOST、CNS、APA);
