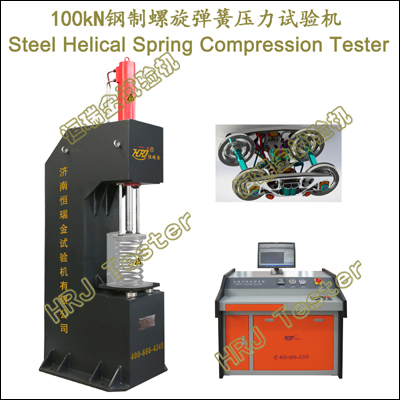

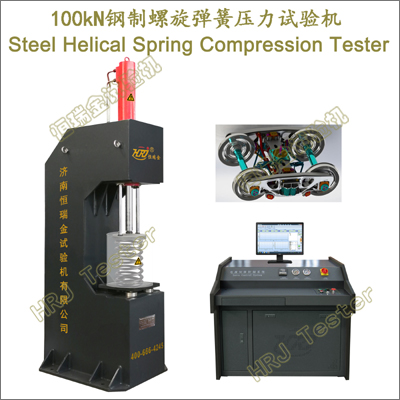

100kN钢制螺旋弹簧压力试验机Steel Helical Spring Compression Tester
重要功能:
→100kN钢制螺旋弹簧轴向压缩载荷测试、钢制螺旋弹簧轴向刚度试验、钢制螺旋弹簧轴向力-变形试验。
→100kN钢制螺旋弹簧压缩试验力、弹簧位移、弹簧剩余高度、弹簧变形、弹簧自由高度、弹簧轴向刚度、弹簧锁定力、弹簧定负荷试验、弹簧定变形试验、弹簧定高度试验、弹簧压缩载荷循环试验、弹簧载荷-时间曲线、弹簧载荷-剩余高度曲线、弹簧载荷-变形曲线、弹簧载荷－位移曲线、弹簧变形-时间曲线。
→100kN机车钢制螺旋弹簧试验、K6转向架弹簧试验、HRJ Tester;K2螺旋弹簧测试、二系悬挂螺旋弹簧测试、铁路客车钢制螺旋弹簧试验、铁路货车钢制螺旋弹簧检测、动车组螺旋弹簧检测。
→车辆钢制螺旋弹簧在标准载荷作用下的弹簧载荷高测试,与标准载荷高比对,检测螺旋弹簧是否合格。
→100kN转向架钢制弹簧试验、100kN转向架螺旋弹簧试验、100kN转向架压缩弹簧试验。
重要参数:
→钢制螺旋弹簧压缩载荷SSCT100kN;
→弹簧载荷分辨力±1/300000;
→弹簧压缩测试空间100～740mm;
→弹簧位移测试0～640mm;
→弹簧位移分辨率0.01mm;
→弹簧压缩压盘400x400mm;
→弹簧压缩试验速度0～100mm/min;
→落地式弹簧荷载机架,油缸上置,弹簧快速安放搬运;
→高刚性、高稳定性、无振动冲击流线型、C型弹簧荷载机架,1.2倍～1.5倍弹簧荷载刚度;
→内置式全数字闭环、多通道、多功能、易操控的HRJ-Test弹簧测控软件/可定制英文版;多种标准方法（国标、国军标、英标、美标、德标、日标、意标、俄标、法标、澳标、欧标等/GB、GJB、ISO、JIS、ASTM、DIN、BS、NF、EN、AS、NBR、IEC、GOST、CNS、APA)。
引用标准、文献文件:
→TB/T2211-2018机车车辆用压缩钢制螺旋弹簧;
→TB/T3143-2018机车车辆密接式车钩缓冲装置;
→GB/T23934-2015热卷圆柱螺旋压缩弹簧技术条件;
→JB/T7796-2017弹簧拉压试验机;
→JIS B 2704-1:2018螺旋压缩与拉伸弹簧 计要求和性能试验方法;
→BS EN 10089;EN 13298;EN 10270-3;EN 10270-2;JIS G4801;JIS E 4206;ASTM A689;ASTM A125-2013;AAR M114;UIC 822 Ed.5;AS 2903;HRJ Tester;ISO 8458-3;DIN 2099-3;DIN 2099-1;DIN 17221;GB/T1222-2016;
→RST100kN转向架压缩弹簧试验机;100kN～1000kN液压式弹簧压力试验机;C型弹簧压力试验机;200kN弹簧横向载荷刚度试验机;HRJ Tester;100kN弹簧垂向疲劳试验机;300kN弹簧二维试验机;100kN车辆缓冲弹簧试验机;25m/min弹簧高速压缩试验机;1000in/min弹簧高速试验系统;国际铁路联盟UIC规范;
