Details:

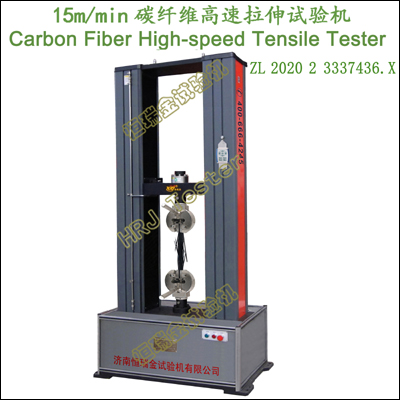

15m/min碳纤维高速拉伸试验机
Carbon fiber High-speed Tensile Tester
→250mm/s应变控制高速拉伸试验机High-speed Strain Tensile Tester;
→600in/min碳纤维高速拉伸试验Carbon fiber High-speed Tensile Test;
→15m/min＆600in/min＆250mm/s高速拉伸试验机系统High-speed Tensile Testing System;
重要功能:
→15m/min碳纤维高速拉伸试验机用于碳纤维材料高速拉伸强度、高速拉伸弹性模量测试及研究。
→250mm/s碳纤维高速拉伸试验机完成碳纤维材料高速拉伸真实应力-应变试验,研究高应变速率拉伸下碳纤维材料真实力学性能。
→600in/min碳纤维应变控制高速拉伸试验机,可完成通用型碳纤维材料高速拉伸、高伸型碳纤维材料高速拉伸、高强型碳纤维材料高速拉伸、中模型和高模型碳纤维材料高速拉伸、长丝碳纤维高速拉伸、短丝和短切碳纤维高速拉伸、聚丙烯腈和沥青碳纤维高速拉伸、碳纤维原丝高速拉伸、碳纤维复丝高速拉伸、纤维丝束高速拉伸真实力学性能测试。
→15m/min＆600in/min＆250mm/s碳纤维应变控制高速拉伸试验机,可完成1K3K6K12K24K小丝束碳纤维材料高速拉伸试验、宇航级碳纤维材料高速拉伸试验,36K48K60K120K180K360K480K大丝束碳纤维高速拉伸试验,工业级碳纤维高速拉伸试验,T300T600T700T800T1000碳纤维材料高速拉伸试验,M30M40M46M50M60M65碳纤维高速拉伸试验。
→15m/min＆600in/min＆250mm/s碳纤维应变控制高速试验机,可测试碳纤维压缩应力、压缩弹性模量、压缩屈服应力、压缩断裂应力、压缩应变、压缩强度、法向压力、泊松比等碳纤维材料力学参数。
→15m/min碳纤维高速拉伸试验机可扩展高低温环境试验箱(-180°C～2200°C),完成碳纤维材料高低温高速拉伸试验。
重要参数:
→高速拉伸试验速度≥15m/min＆600in/min＆250mm/s;
→0.1mm/min～15m/min高速拉伸启动时间 <= 2.0s;
→15mm/min～0.1m/min高速拉伸停止时间 <= 2.0s;
→高速拉伸载荷精度 <= ±0.5%（范围0.2%～100%F.S）;
→高速拉伸冲击采集频率≥5000Hz;
→HRJ-Test应变控制高速拉伸冲击试验软件/中文版/可定制英文版;
→人体工程学设计,机宜人、人适机,符合人-机-环境系统,高效、健康、舒适、安全。
→精密无间隙滚珠丝杠,大跨度、高刚性、高稳定性、无振动冲击、流线型门式载荷机架。
→可选标准机柜(计算机、测控系统一体化集成);
→可选HRJ旋转式计算机操控系统Computer Control System(CCS);
→可选HRJ触屏操控系统Touch Screen System(TSS);
依据标准:
ASTM D4018;ASTM D695;DIN.BS.EN.NF.ISO14126;BS EN300;ISO10618:2004(E);ISO527-4;ISO11403-1;ISO18872;GB/T3362-2017;GB/T32498-2016;GB/T33617-2017;jnshiyanji.com;GB/T31290-2014;GB/T31290-2014;GB/T30022-2013;GB/T35378-2017;GB/T35156-2017;GB/T14190-2017;GB/T6506-2017;GB/T34520.4-2017;GB/T34520.5-2017;GB/T34520.7-2017;hrjtest.com;GB/T3354-2014;GB/T3355-2014;GB/T3356-2014;GB/T8050-2017;GB/T11787-2017;JG/T167-2016;GB/T26749;GB/T26752;GB/T26743;GB/T26744;GB/T26745;GB/T1447;GB/T21490;JG/T351;JT/T532;Carbon fiber-Determination of the tensile properties of single-filament specimens;hrjtest.com;Test method of tensile properties of orientation fiber reinforced polymer matrix composite materials;Fiber-reinforced plastic composites-Determination of compressive properties in the in-plane direction;Fiber reinforced composite bars for civil engineering;jnshiyanji.com;Glass fiber sheet for strengthening and restoring structures;Basalt fiber composites for strengthening and restoring structures;hrjtest.com;Carbon fiber laminate for strengthening and restoring structures;Carbon fiber reinforced polymer laminate for bridge structures;hrjtest.com;Test method for basic mechanical properties of fiber reinforced polymer bar;Carbon fiber-Determination of tensile properties of resin-impregnated yarn;PAN-based carbon fiber;jnshiyanji.com;Warp knitting carbon fiber reinforcements;Test methods for tensile properties of carbon fiber multifilament;Fiber-reinforced plastics composites-Determination of compressive properties;hrjtest.com;Test method for tensile properties of orientation fiber reinforced polymer matrix composite materials;Test method for in-plane shear response of polymer matrix composite materials;Test method for flexural properties of orientational fiber reinforced polymer metrix composite materials;Metal matrix composites-Tensile testing-Method of test at ambient temperature;jnshiyanji.com;Fiber ropes-Polypropylene split film,monofilament and multifilament(PP2) and polypropylene high-tenacity multifilament(PP3);3,4,8and12 strand ropes;Test conditions for isotropic and orthotropic fiber-reinforced plastics composites;Fiber ropes-Polyester-3,4,8and12-strand ropes;jnshiyanji.com;Fiber-reinforced plastics composites-Determination of tensile properties; Oriented strand boards(OSB)-Definitions, classification and specifications;hrjtest.com;Multifilament Tensile Test;Compressive Stress test;Normal Stress Test;Compressive Strain Test;Compressive Strength Test;Length Diameter Ratio;
高速拉伸试验机系列:
10N～100kN高速拉伸试验机;50kN高速拉伸冲击试验机;10N～100kN高速高低温拉伸试验机;
1000in/min高速拉伸试验机;25m/min高应变高速拉伸试验机;800in/min高速高低温拉伸试验机;
6m/min铝合金板带材高速拉伸试验机;10m/min热熔对接接头高速拉伸冲击试验机;
6m/min～25m/min高速拉伸冲击试验机;100mm/s～416mm/s高速拉伸试验机系统;
